Vehicle Engines
M16 TCI 180

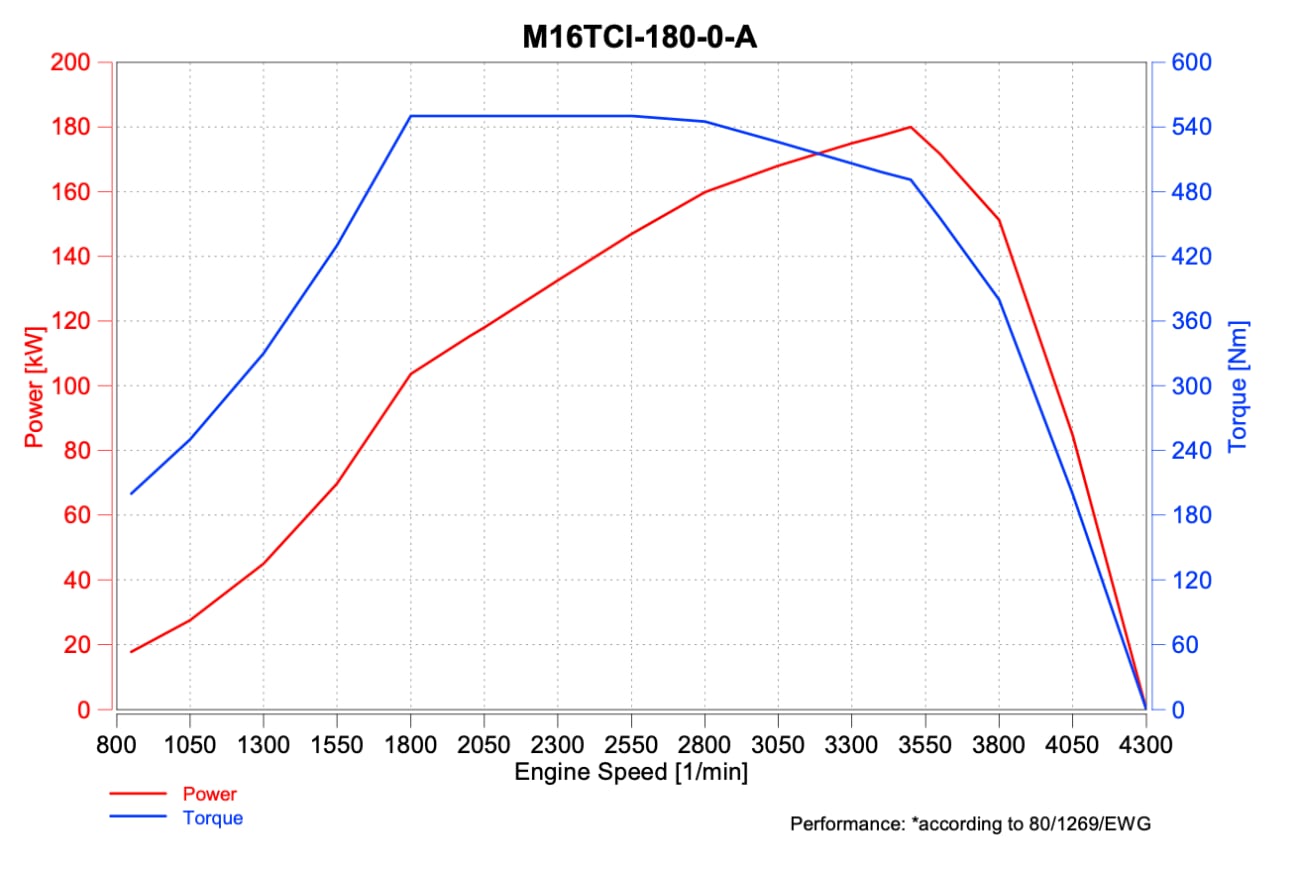

Power
180 kW / 245 HP
Torque
550 Nm @ 1800 RPM
Displacement
2.1L
Weight
255 kg
Technical Specifications
180 KW MODEL
M16 TCI 180
| Combustion System | Direct Injection Diesel |
|---|---|
| Displacement | 3,2 lt |
| Bore | 85 mm |
| Stroke | 94 mm |
| Charging System | turbocharged – single stage VTG intercooled |
| Rated Power | 180/245 |
| Rated Speed | 3500 |
| Max Torque | 550@1800 |
| Min. Fuel Consumption | 205 |
| Dry Weight | 255 |
| Certification | EURO III HD, ECE-R24 |

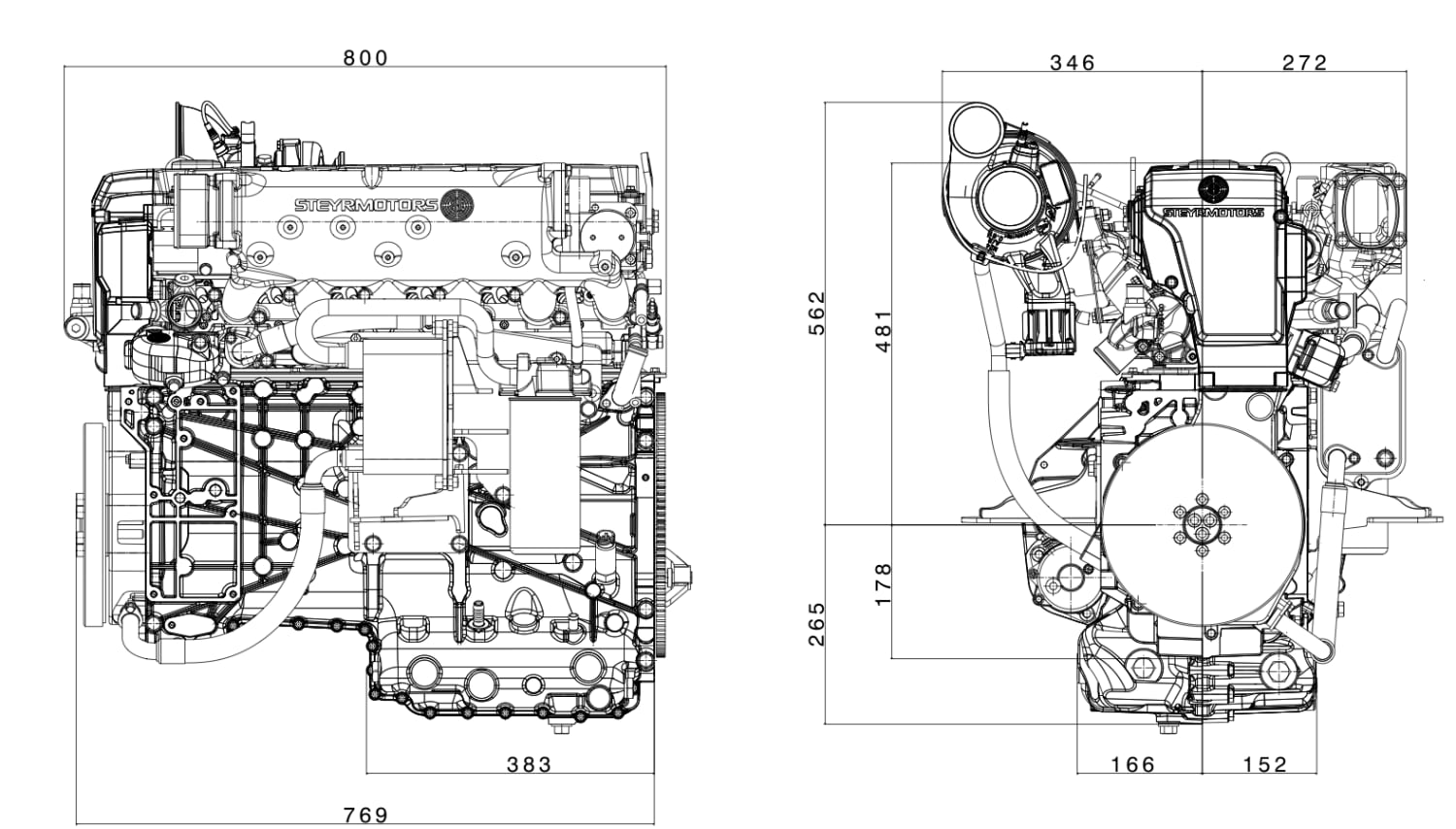

Standard base engine for vertical installation with full flexibility for customer specific FEAD and transmission interface.
Deep Fording and EMV mil.461-E upgrade potential.

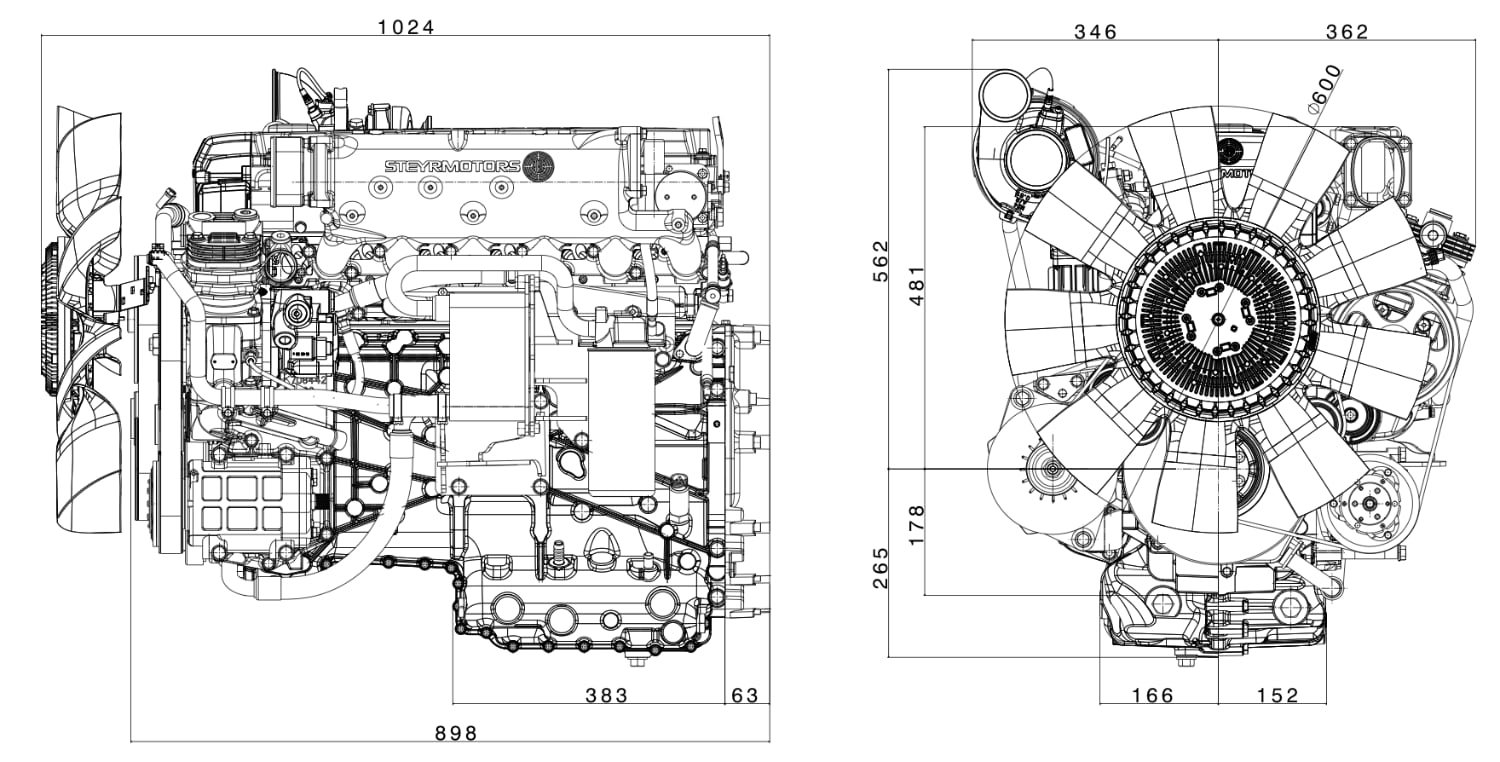

Standard base engine for vertical installation with full equipped FEAD and transmission interface for ZF8HP90 or Allison S1000 / S2000 / S2500 series.
Deep Fording and EMC mil.461-E upgrade potential.
FEAD aggregates:
Alternator 28V-100A and 28V-275A
Air compressor 150 ccm 10 bar
Hydr. pump 17 cm³/rev 16 l/min 183 bar
AC compressor 200 cm³
Visco fan Ø 600 (electric controlled)

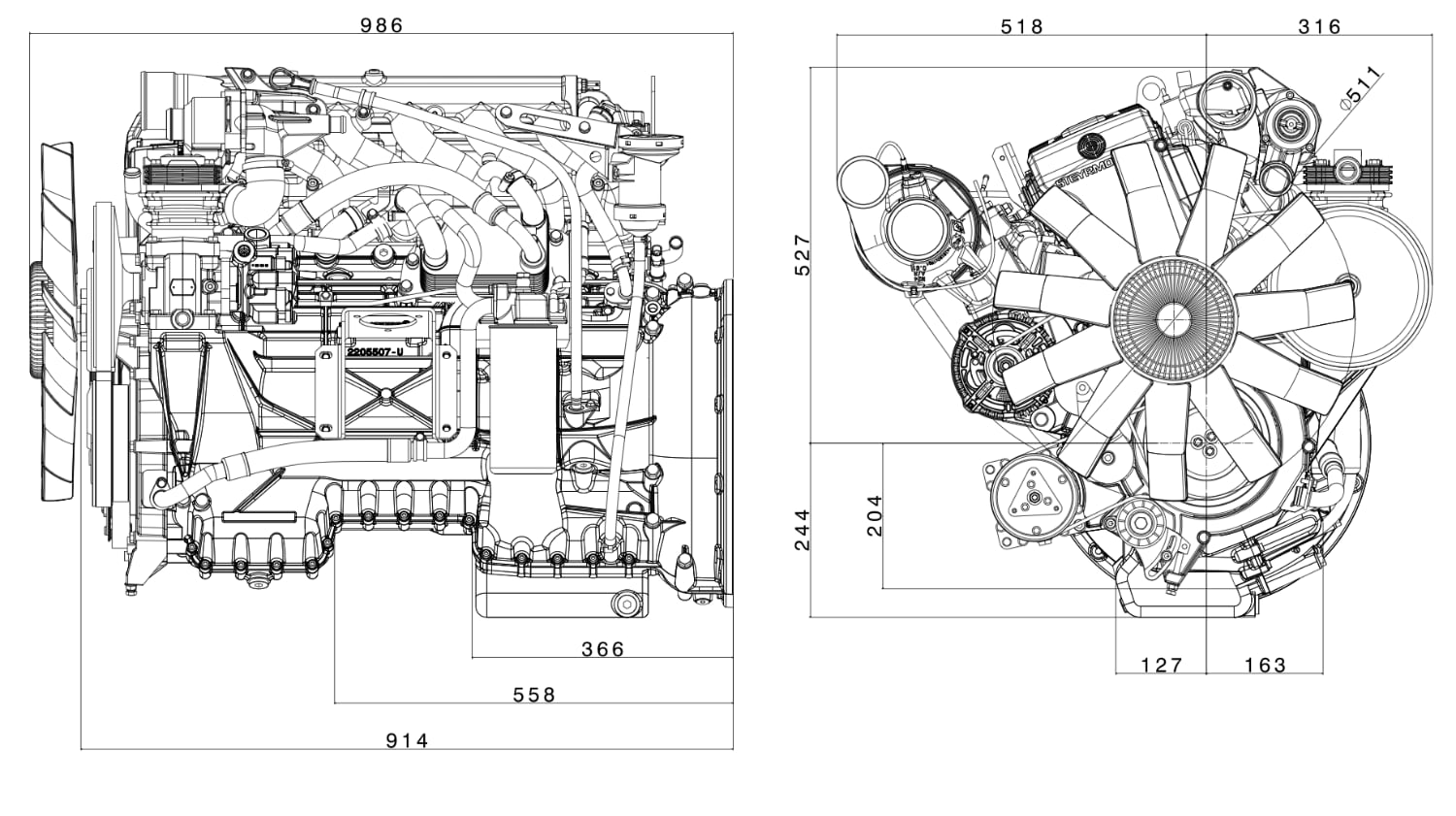

Standard base engine for 23° inclined installation with full equipped FEAD and transmission interface for Allison S1000 / S2000 / S2500 series. Limited flexibility for FEAD aggregates and transmissions.
FEAD aggregates:
Alternator 28V-100A
Air compressor 150 ccm 10 bar
Hydr. pump 17 cm³/rev 16 l/min 183 bar
AC compressor 155 cm³
Visco fan Ø 500
Applications
-
Special Operations
-
Tactical Vehicle
-
All Terrain
-
Highly mobile, Air-transportable
